Overview

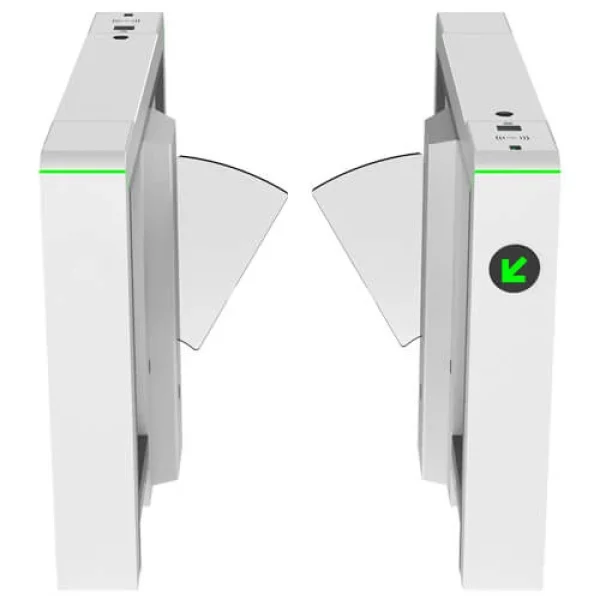

SBTL 8000 is an indoorspeed gate series which featured by its modular reader panel design. The modularization of reader panel not only benifits end user for easy upgrade or switching on reader but also helpsrelieving middlemen’sinventory pressure and allows them to have in-time market response.

Item Description

Technical Specifications

Power requirements AC 100~ 120V/200 ~ 240V, 50/60Hz
Working temperature -28°C~ 60°C
Working humidity 20%-95% (Non-condensing)
Working environment Indoor
Speed of throughput Maximum 40/ minute
Lane width(mm) 660
Footprint(mm*mm) 1600*1040
Dimensions(mm) L=1600,W=1040, H=1200
Dimensionwith packing(mm) L=1700,W=300, H=1130
Netweight(kg) 130kg
Weight with packing(kg) 150kg
Cabinet material SUS304 Stainless Steel
Lid material SUS304 Stainless Steel+Acrylic
Barrier material Acrylic
Barrier movement Swing
Emergency mode Y
