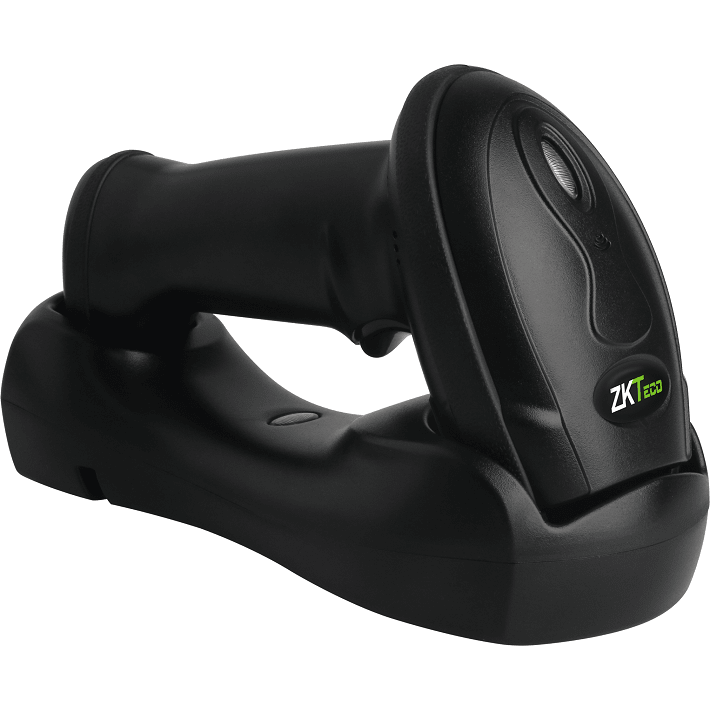

ZKB200 adopts advanced image barcode reading technology. Whether a paper barcode or an electronic screen barcode, it can read quickly, making your scanning easier.
Share the Website to
Item Description
Parameter
| Mechanical Characteristics | |
| Dimensions | 76.6 *67.3*168.5 mm (L*W*H) |
| Weight | 116 g (without cable) |
| Cable | Straight 2.0 m |
| Connector Type | RJ-45 phone jack connector |
| Indicator | Beeper, LED |
| Interface Supported | RS-232, USB Keyboard, USB virtual COM |
| Operating Mode | Hand-held, Auto-detection |
| Programming Method | Manual (reading special barcode) |
| Electrical Characteristics | |
| Input Voltage | 3.8 – 5.5 VDC |
| Current | 85 mA (standby) @ 5 VDC, 265 mA (working) @ 5 VDC |
| Scan Performance | |
| Image Size | 640*480 pixels |
| Imager Field of View | Horizontal: 40°, Vertical: 30° |
| Scanning Angle | ±60°, ±40°, 360° (skew, pitch, roll) |
| Print Contrast | 20% minimum reflective difference |
| Decoding Capability | 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39,
Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants 2D: PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code |
| Minimum Resolution | 1D: 4 mil (Code 128), 2D: 6.7 mil (PDF417) |
| Decoding Depth | 4 mil Code128 (9 chars): 40 mm – 70 mm 10 mil Code39 (3 chars): 20 mm – 185 mm 13 mil UPC (6 chars): 15 mm – 190 mm 20 mil Code39 (1 char): 45 mm – 320 mm 6.7 mil PDF417 (20 chars): 28 mm – 90 mm 10 mil QR (20 chars): 18 mm – 115 mm 10 mil DM (20 chars): 18 mm – 115 mm 20 mil QR (20 chars): 20 mm – 245 mm |
