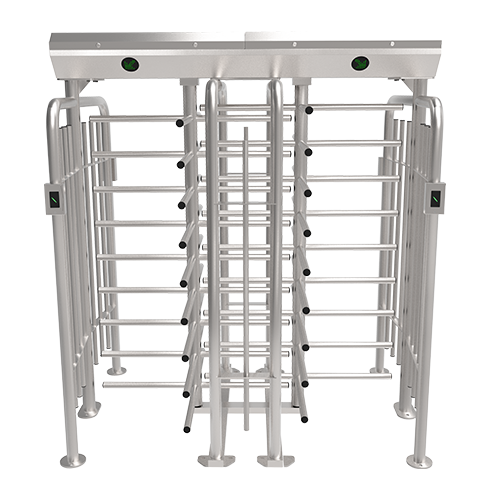

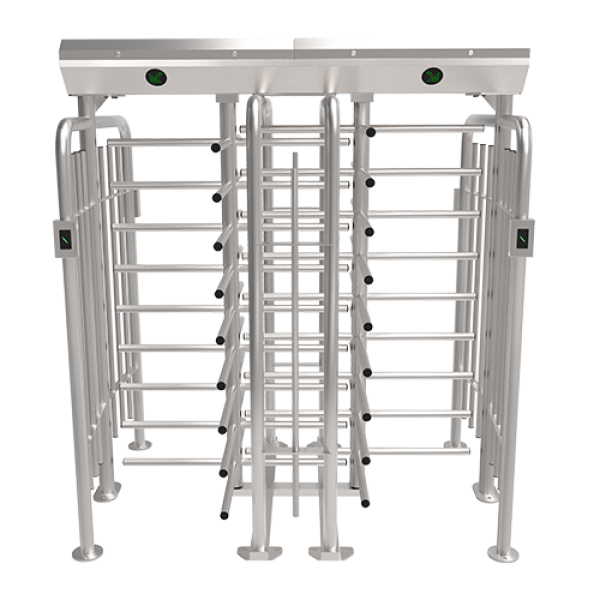

FHT2400D: Full Height Turnstile
FHT2411D: Full Height Turnstile with RFID Access Control System
FHT2422D: Full Height Turnstile with Fingerprint and RFID Access Control System
Item Description
Overview
- Modular design
- Visible indicator
- Semi-automatic mechanism
- SUS304 stainless steel cabinet
Technical Specifications
| Power requirements | AC110V/220V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 0%~95% | |
| Working environment | Indoor/Outdoor | |
| Speed of throughput | RFID | Maximum 30/minute |
| Fingerprint | Maximum 25/minute | |
| Face | Maximum 15/minute | |
| Vein | Maximum 15/minute | |
| Lane width(mm) | 580 | |
| Footprint(mm*mm) | 2018*1324 | |
| Dimension(mm) | L=2018 W=1324 H=2220 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Barrier material | SUS304 Stainless Steel | |
| Barrier movement | Rotating | |
| Emergency mode | Y | |
